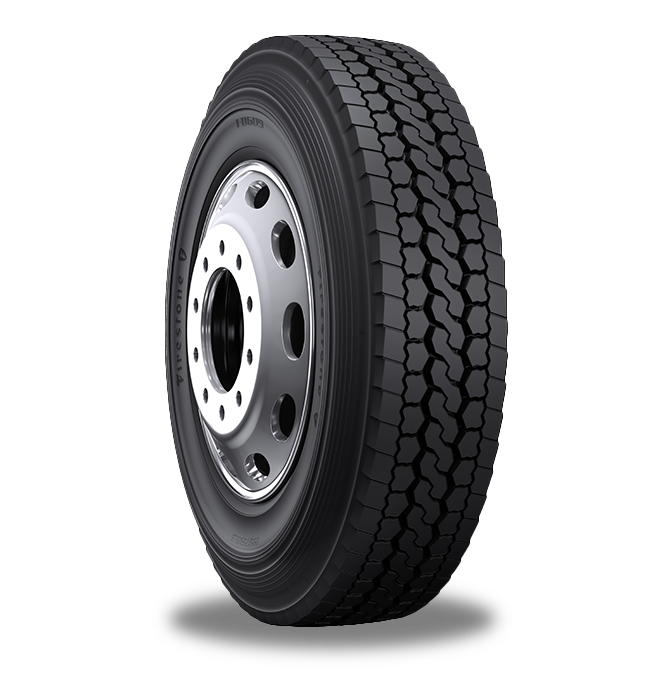

FD609

Truckload

Building on a long legacy of dependable value, Firestone introduces the FD609 long haul drive tire that combines the proven tread design of Firestone with a Bridgestone-engineered casing for unbeatable treadwear and mileage plus the additional benefits of casing durability and retreadability.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Truckload
Article Number: 13818
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 29 23.1
Load Range: G
Overall Width (in) (mm): 11.5 292
Overall Diameter (in) (mm): 40.7 1034
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.6 320
Static Loaded Radius (in) (mm): 19 483
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 510 317

Application: Truckload
Article Number: 13819
Tire Size: 11R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 29 23.1
Load Range: G
Overall Width (in) (mm): 11.3 287
Overall Diameter (in) (mm): 41.8 1062
Max. Tire Load Dual (lbs) (kg): 5840 2650
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.5 318
Static Loaded Radius (in) (mm): 19.5 495
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 497 309

Application: Truckload
Article Number: 13827
Tire Size: 11R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 29 23.1
Load Range: G
Overall Width (in) (mm): 11.4 290
Overall Diameter (in) (mm): 43.8 1113
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.5 318
Static Loaded Radius (in) (mm): 20.5 521
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 474 295

Application
Article Number: 151009
Tire Size: 12R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 26 20.6
Load Range: H
Overall Width (in) (mm): 11.6 295
Overall Diameter (in) (mm): 43.1 1095
Max. Tire Load Dual (lbs) (kg): 6780 3075
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 9 229
Overall Width Loaded (in) (mm): 12.8 325
Static Loaded Radius (in) (mm): 20 508
Max. Tire Load Single (lbs) (kg): 7390 3350
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 482 299

Application
Article Number: 211206
Tire Size: 11R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 26 20.6
Load Range: H
Overall Width (in) (mm): 10.8 274
Overall Diameter (in) (mm): 41.9 1064
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 11.9 302
Static Loaded Radius (in) (mm): 19.5 495
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 496 308

Application
Article Number: 281034
Tire Size: 10R22.5
Compound
Ply/Star Rating: 12
Tread Depth (32nds) (mm): 24 19.3
Load Range: F
Overall Width (in) (mm): 9.9 251
Overall Diameter (in) (mm): 40.5 1029
Max. Tire Load Dual (lbs) (kg): 4940 2240
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 7.5 191
Overall Width Loaded (in) (mm): 10.9 277
Static Loaded Radius (in) (mm): 18.9 480
Max. Tire Load Single (lbs) (kg): 5205 2360
Inflation Pressure (psi) (kPa): 100 690
Revolutions Per (mile) (km): 513 319

Application
Article Number: 281042
Tire Size: 11R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 26 20.6
Load Range: G
Overall Width (in) (mm): 10.8 274
Overall Diameter (in) (mm): 41.9 1064
Max. Tire Load Dual (lbs) (kg): 5840 2650
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 11.9 302
Static Loaded Radius (in) (mm): 19.5 495
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 496 308

Application
Article Number: 281050
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 26 20.6
Load Range: G
Overall Width (in) (mm): 10.9 277
Overall Diameter (in) (mm): 40.6 1031
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12 305
Static Loaded Radius (in) (mm): 19 483
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 511 318

Application
Article Number: 281069
Tire Size: 11R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 26 20.6
Load Range: G
Overall Width (in) (mm): 10.8 274
Overall Diameter (in) (mm): 43.9 1115
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 11.9 302
Static Loaded Radius (in) (mm): 20.5 521
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 474 294

Application
Article Number: 281077
Tire Size: 285/75R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 26 20.6
Load Range: G
Overall Width (in) (mm): 10.7 272
Overall Diameter (in) (mm): 41.9 1064
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 11.8 300
Static Loaded Radius (in) (mm): 19.6 498
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 496 308

Application
Article Number: 293733
Tire Size: 11R24.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 26 20.6
Load Range: H
Overall Width (in) (mm): 10.9 277
Overall Diameter (in) (mm): 43.9 1115
Max. Tire Load Dual (lbs) (kg): 6610 3000
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12 305
Static Loaded Radius (in) (mm): 20.5 521
Max. Tire Load Single (lbs) (kg): 7160 3250
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 474 294

Specialized Features

Features & Benefits

SOLID SHOULDER RIB: Distributes weight and torque evenly to fight irregular wear
AGGRESSIVE CENTER LUGS: Help to improve traction in wet or dry conditions for the life of the tread
TIE BARS: Control movement of center tread blocks to help minimize irregular wear, leading to longer original tread life
MULTIPLE GRIPPING EDGES: Provide biting edges that help promote wet traction
