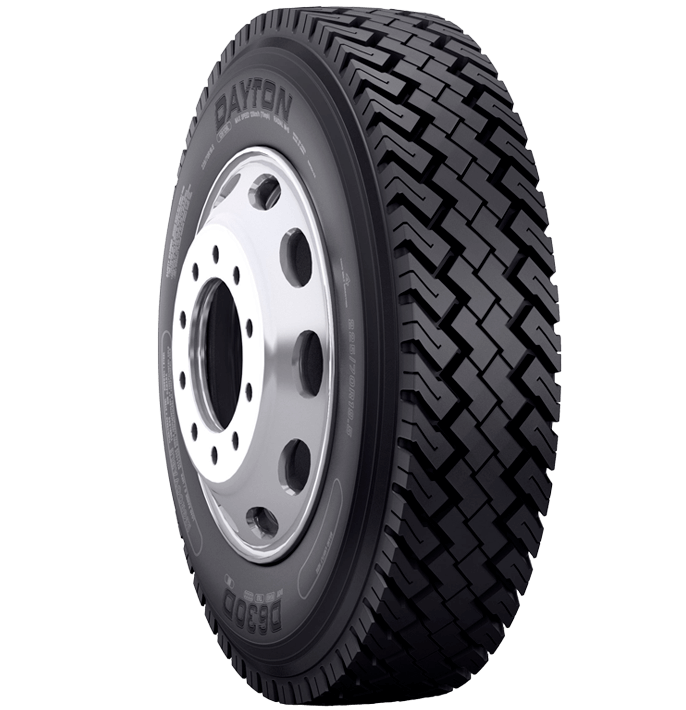

D630D

Distribution and P&D

The D630D On-highway Tire is recommended for the drive position in regional service, distribution and P&D applications. Its unique diagonal interlocking block and lug design creates reliable traction on the road in dry or wet conditions.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Distribution and P&D
Article Number: 3317
Tire Size: 225/70R19.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 19
Load Range: G
Overall Width (in) (mm): 8.9 226
Overall Diameter (in) (mm): 31.9 810
Max. Tire Load Dual (lbs) (kg): 3750 1700
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6.75 171
Overall Width Loaded (in) (mm): 9.8 249
Static Loaded Radius (in) (mm): 14.9 378
Max. Tire Load Single (lbs) (kg): 3970 1800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 646 401

Specialized Features

FEATURES & BENEFITS

: Diagonal interlocking block/lug design for reliable traction.
: Wide, tapered grooves help prevent stone retention and drilling.
: Aggressive lug design enhances wet traction.
: Limited inventory in the following sizes: 245/70R19.5. Contact your local dealer for availability.
