R238

Distribution and P&D, Bus & Coach

Premium All-Position Radial

The Bridgestone R238 is an all-position radial tire that stands up to the harshness of severe, high scrub environments in regional pickup and delivery applications. Protective features in the casing and tread design help resist damage from curbing and maneuvering scrub, contributing to long tread life. The pattern complements the Bridgestone R268 Ecopia all-position tire, which is available in larger sizes.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Distribution and P&D, Bus & Coach
Article Number: 279
Tire Size: 265/70R19.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 17 13.2
Load Range: G
Overall Width (in) (mm): 10 254
Overall Diameter (in) (mm): 34.1 866
Max. Tire Load Dual (lbs) (kg): 5205 2360
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 7.5 191
Overall Width Loaded (in) (mm): 10.96 278
Static Loaded Radius (in) (mm): 15.79 401
Max. Tire Load Single (lbs) (kg): 5510 2500
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 608.6 378

Application: Distribution and P&D, Bus & Coach
Article Number: 4085
Tire Size: 245/70R17.5
Compound
Ply/Star Rating: 18
Tread Depth (32nds) (mm): 17 13.2
Load Range: J
Overall Width (in) (mm): 9.6 244
Overall Diameter (in) (mm): 31.4 798
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 6.75 171
Overall Width Loaded (in) (mm): 9.6 244
Static Loaded Radius (in) (mm): 14.4 366
Max. Tire Load Single (lbs) (kg): 6005 2725
Inflation Pressure (psi) (kPa): 125 860
Revolutions Per (mile) (km): 662 411

Application: Distribution and P&D, Bus & Coach
Article Number: 248664
Tire Size: 225/70R19.5
Compound
Ply/Star Rating: 12
Tread Depth (32nds) (mm): 16 12.7
Load Range: F
Overall Width (in) (mm): 8.7 221
Overall Diameter (in) (mm): 32.2 818
Max. Tire Load Dual (lbs) (kg): 3415 1550
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6 152
Overall Width Loaded (in) (mm): 9.5 241
Static Loaded Radius (in) (mm): 15 381
Max. Tire Load Single (lbs) (kg): 3640 1650
Inflation Pressure (psi) (kPa): 95 660
Revolutions Per (mile) (km): 644 400

Application: Distribution and P&D, Bus & Coach
Article Number: 248698
Tire Size: 245/70R19.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 18 14.3
Load Range: G
Overall Width (in) (mm): 9.3 236
Overall Diameter (in) (mm): 33.3 846
Max. Tire Load Dual (lbs) (kg): 4300 1950
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6.75 171
Overall Width Loaded (in) (mm): 10.26 261
Static Loaded Radius (in) (mm): 15.46 393
Max. Tire Load Single (lbs) (kg): 4540 2060
Inflation Pressure (psi) (kPa): 110 720
Revolutions Per (mile) (km): 623 387

Application: Distribution and P&D, Bus & Coach
Article Number: 248715
Tire Size: 245/70R19.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 18 14.3
Load Range: H
Overall Width (in) (mm): 9.3 236
Overall Diameter (in) (mm): 33.3 846
Max. Tire Load Dual (lbs) (kg): 4675 2120
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6.75 171
Overall Width Loaded (in) (mm): 10.26 261
Static Loaded Radius (in) (mm): 15.46 393
Max. Tire Load Single (lbs) (kg): 4940 2240
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 623 387

Application: Distribution and P&D, Bus & Coach
Article Number: 248732
Tire Size: 245/70R19.5
Compound
Ply/Star Rating: 12
Tread Depth (32nds) (mm): 18 14.3
Load Range: F
Overall Width (in) (mm): 9.3 236
Overall Diameter (in) (mm): 33.3 846
Max. Tire Load Dual (lbs) (kg): 3860 1750
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6.75 171
Overall Width Loaded (in) (mm): 10.26 261
Static Loaded Radius (in) (mm): 15.46 393
Max. Tire Load Single (lbs) (kg): 4080 1850
Inflation Pressure (psi) (kPa): 95 660
Revolutions Per (mile) (km): 623 387

Application: Distribution and P&D, Bus & Coach
Article Number: 3887
Tire Size: 215/75R17.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 15 12
Load Range: H
Overall Width (in) (mm): 8.8 224
Overall Diameter (in) (mm): 30.7 780
Max. Tire Load Dual (lbs) (kg): 4540 2060
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 6 152
Overall Width Loaded (in) (mm): 9.7 246
Static Loaded Radius (in) (mm): 14.4 366
Max. Tire Load Single (lbs) (kg): 4805 2180
Inflation Pressure (psi) (kPa): 125 860
Revolutions Per (mile) (km): 677 421

Application: Distribution and P&D, Bus & Coach
Article Number: 9121
Tire Size: 225/70R19.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 16 13
Load Range: G
Overall Width (in) (mm): 8.7 221
Overall Diameter (in) (mm): 32.2 818
Max. Tire Load Dual (lbs) (kg): 3750 1700
Max. Speed (mph) (km/h): 87 140
Meas. Rim (in) (mm): 6 152
Overall Width Loaded (in) (mm): 9.5 241
Static Loaded Radius (in) (mm): 15 381
Max. Tire Load Single (lbs) (kg): 3970 1800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 644 400

Specialized Features

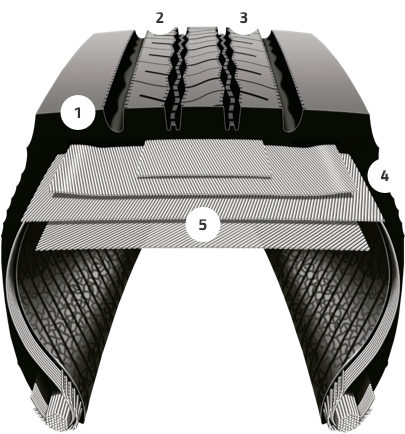

FEATURES & BENEFITS

Wide, Solid Shoulder Ribs: Help deliver enhanced resistance to maneuvering scrub and increased tread life
High Scrub Tread Compound: Enhances resistance to tread scrubbing, leading to increased tread life
NanoPro-Tech™ Compound: Patented NanoPro-Tech polymer technology limits energy loss for improved rolling resistance
Sidewall Protector Ribs: Preserve casing durability by fighting curbing damage with thick ribs on both sidewalls
Wider Belts: Wide belts extend to the shoulder area, which helps to reduce the occurrence of both irregular shoulder wear and casing damage
